Product Overview

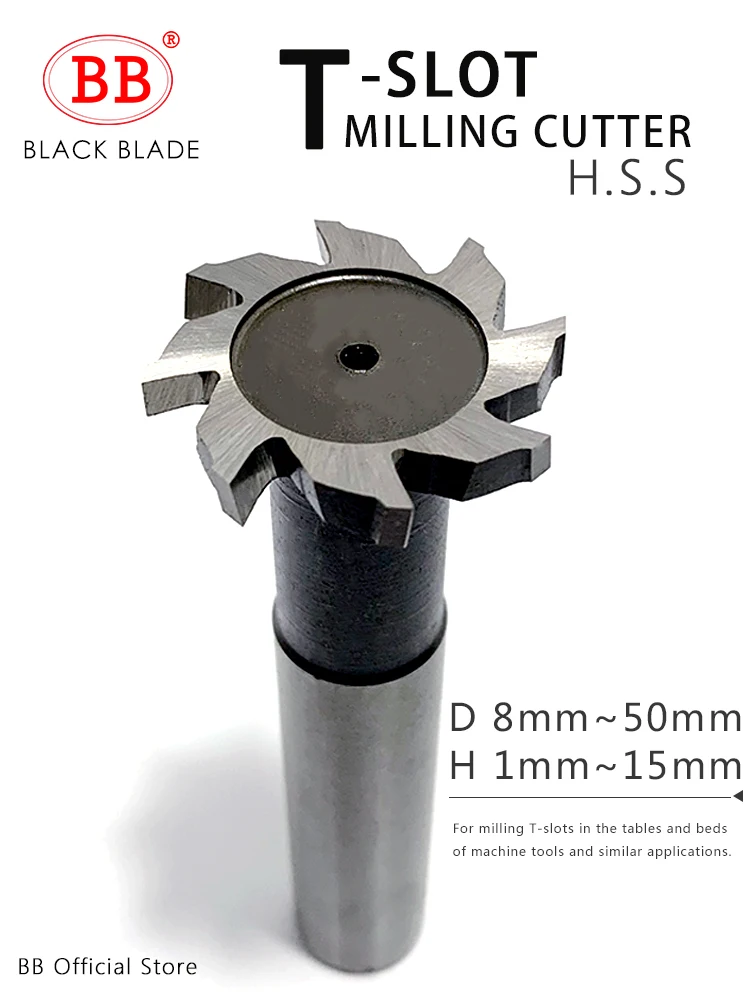

The XTRA MACHINE HSS T-Slot Milling Cutter is a robust and precision-engineered tool designed for creating accurate T-slots and routing Woodruff key seats in a wide range of metal workpieces. Crafted from high-speed steel (HSS), this cutter ensures exceptional durability and performance for demanding industrial machining applications. Its specialized geometry is optimized for efficient chip evacuation, making it ideal for forming critical grooves in machine tool tables, fixtures, and components requiring precise slotting.

Key Technical Features

• **Premium HSS Construction:** Manufactured from high-grade High-Speed Steel for superior hardness, wear resistance, and heat tolerance during rigorous milling operations.
• **Optimized T-Slot Design:** Specifically engineered for the precise and efficient creation of T-slots, essential for secure clamping and fixturing systems.

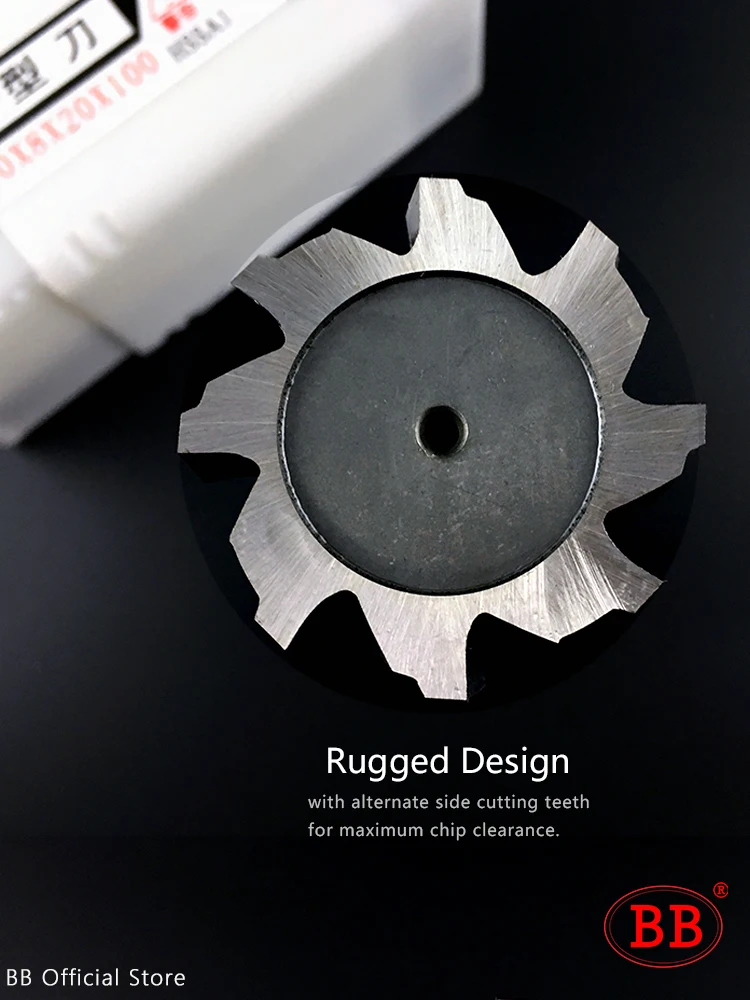

• **Rugged Alternate Tooth Geometry:** Features an aggressive alternate side cutting tooth design that maximizes chip clearance, significantly improving cutting efficiency and surface finish by preventing chip re-cutting.
• **Integral Shank Design:** Provides superior rigidity and stability, reducing vibration and enhancing tool life and machining accuracy.

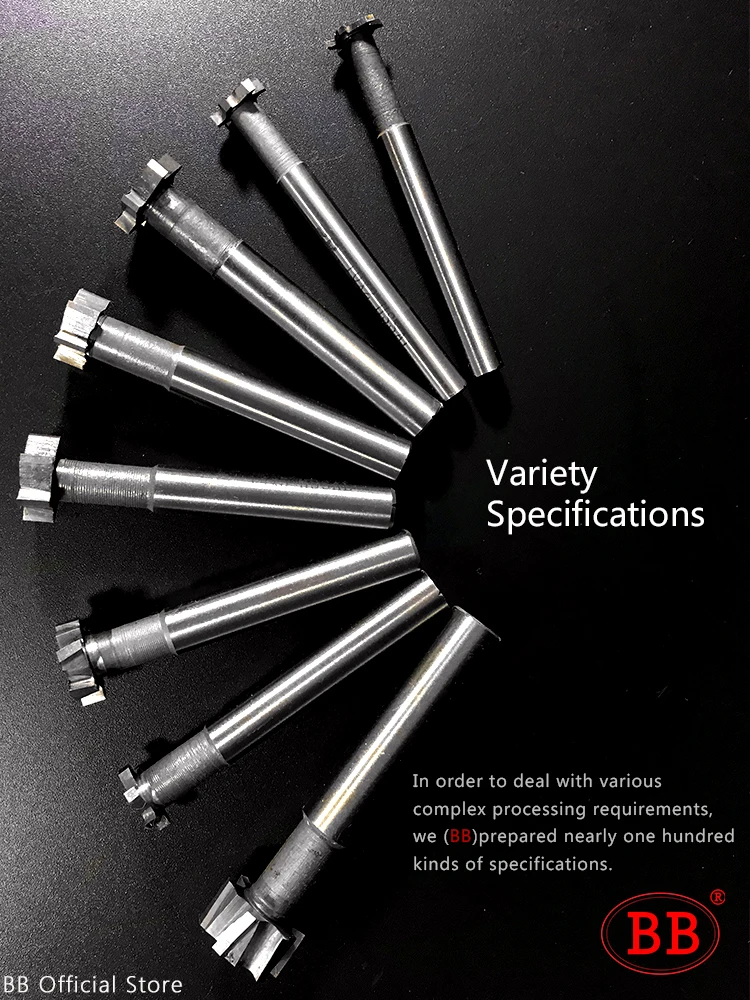

• **Wide Dimensional Range:** Available in a comprehensive array of diameters and cutting edge lengths to meet diverse application requirements for various slot dimensions.

Applications & Material Compatibility

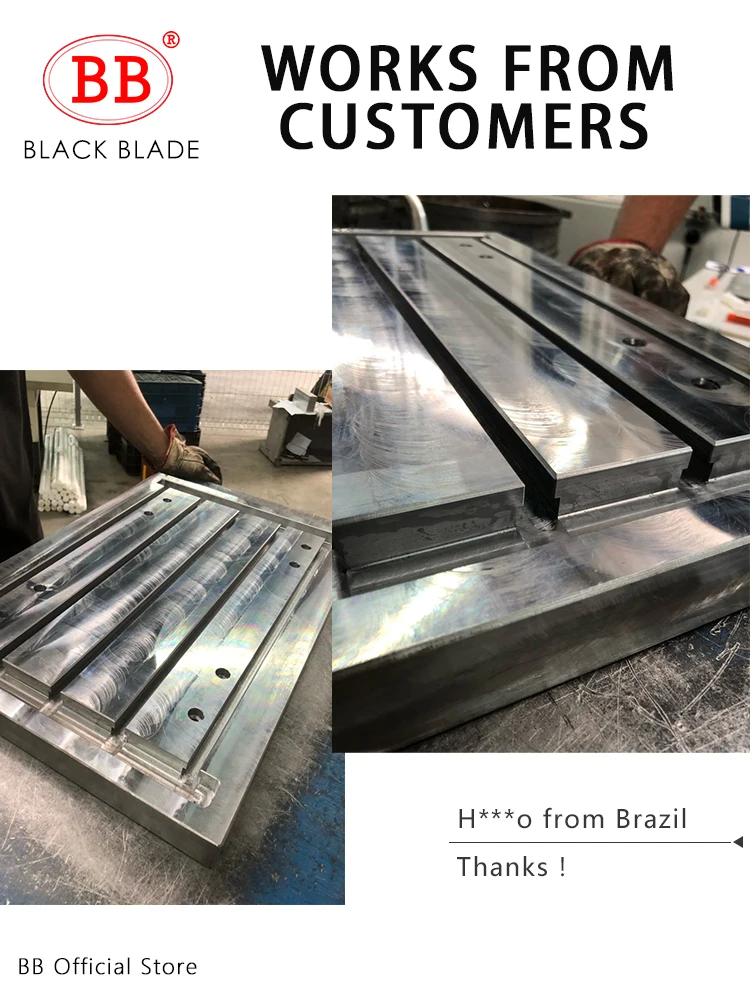

• Milling precise T-slots in machine tool tables, vises, jigs, and fixtures.
• Routing Woodruff key seats for secure component fastening on shafts and other parts.
• General slotting and profiling operations in a broad range of ferrous and non-ferrous metals.
• Compatible with materials including carbon steels, alloy steels, cast iron, aluminum, and other non-ferrous alloys.

Technical Specifications & Dimensions

While specific dimensions vary by model, a typical configuration is detailed below. The XTRA MACHINE HSS T-Slot Milling Cutter series offers a comprehensive range of sizes to suit diverse machining needs.

The full range of XTRA MACHINE T-Slot Milling Cutters is available with:

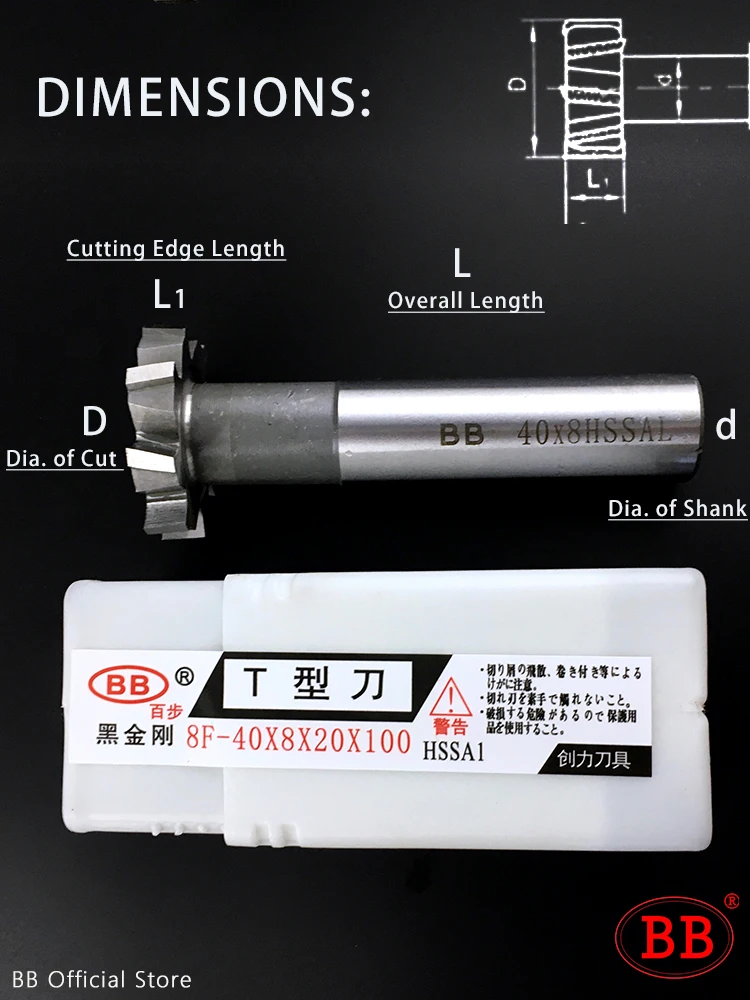

• **Diameter of Cut (D):** From 8 mm to 50 mm
• **Cutting Edge Length (L1):** From 1 mm to 15 mm

Shank diameters (d) and overall lengths (L) are engineered proportionally to the cutting diameter and length to ensure optimal performance and stability across the entire product line.
